Product profile
1.1 General description
This is a type of aluminum PCB for the application of Led Lighting. It's a single layer
MCPCB board at 1.2 mm thick with 1 W/MK thermal conductivity. The aluminum plate
is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. 25 panels are packed for shipment.
1.2 Features and benifits
A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Comprehensive equipment management and maintenance and process control,
H. DDU Door to door shipment with competitive shipping cost,
I. Engineering design prevents problems from occurring in pre production.
J. UL recognized and RoHS Directive-compliant
K. 1-10 pieces are offered for sale.
L. No MOQ, low cost for prototypes and samples.
1.3 Application
All kinds of energy-saving LED lights,Rectifier bridge, Electro-mechanical, Dining room
lighting,
1.4 Parameter and data sheet
| PCB SIZE | 130 x 50mm=10PCS |
| BOARD TYPE | IMS PCB |
| Number of Layers | Single sided PCB, Metal core PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material 75um |
| Aluminum 5052 1.2mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/14mil |
| Minimum / Maximum Holes: | 3.5mm/ 6.5mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, mirror reflection |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.2mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG) ( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | no silkscreen |
| Colour of Component Legend | no silkscreen |
| Manufacturer Name or Logo: | as per requirement |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Developing line
|
|

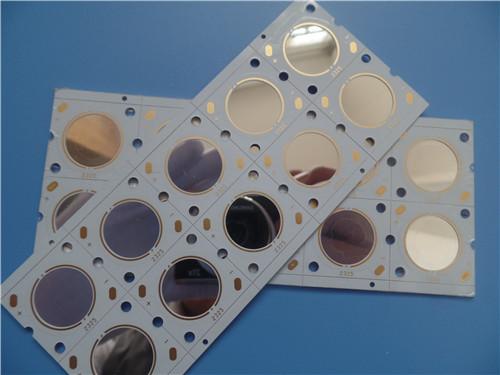

Aluminum PCB with Mirror Reflection Images
|
